Professional Microphone Capsules Chaw tsim tshuaj paus - K47, K67, CK12, M7 & OEM / ODM Service muaj
Lub microphone capsule yog qhov tseem ceeb tshaj plaws hauv kev txiav txim siab tus cwj pwm thiab qhov zoo ntawm koj lub suab. Peb muab cov nqi hloov pauv thiab tus thawj-spec microphone capsules tsim los txhawb koj cov ntaub ntawv kaw lus los ntawm tus qauv mus rau studio- qib. Txawm hais tias koj tab tom tsim lub tshuab raj microphone, kho cov vintage classic, lossis tsim cov kab tshiab ntawm condenser mics, peb qhov ntau ntawm K47, K67, K87, M7, thiab CK12 tsiav tshuaj muaj qhov tseeb thiab kev ntseeg siab uas koj xav tau.
Microphone Capsule Sib piv & Daim Ntawv Thov
Nkag siab txog qhov sib txawv ntawm sonic ntawm cov tshuaj ntsiav yog qhov tseem ceeb ntawm kev xaiv qhov yog. Hauv qab no yog ib qho kev tawg ntawm peb cov qauv nrov tshaj plaws.

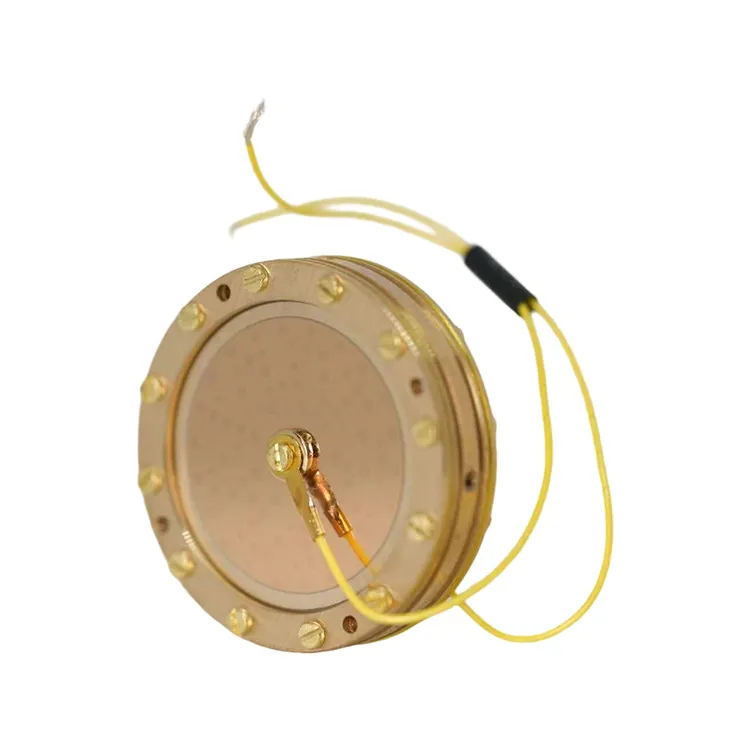

k47 tsi
Qhov zoo tshaj plaws rau:Kev kaw suab, Bass instruments, Darker sources.
K47 capsule yog ib qho loj - diaphragm condenser capsule: ib qho backplate, tsoos K47 drilling qauv, khoom siv dag zog. Peb phim lawv rau hauv 0.5dB hauv rhiab heev, ob sab pem hauv ntej mus rau sab nraub qaum thiab tshuaj ntsiav rau tshuaj ntsiav, thiab nyob rau hauv li 1.5dB hauv zaus teb, 50-15,000Hz.
Yam ntxwv:Smooth saum- kawg, nplua nuj qis- nruab nrab, tsis muaj qhov siab siab.
Ideal Application:Lead vocals, ncaws nruas, thiab guitar cov khoom uas koj xav kom tsis txhob "sibilance."
k67 tsi
Qhov zoo tshaj plaws rau:Pop vocals, Acoustic guitar, Lub hom phiaj dav dav.
K67 capsule yog cov neeg ua haujlwm hauv kev lag luam, pom hauv Neumann U67 thiab U87. Nws nta me ntsis lub ncov nyob rau hauv lub siab zaus (nyob ib ncig ntawm 10kHz-12kHz), uas ntxiv "cua" thiab clarity rau kaw.
Yam ntxwv:Bright, nthuav dav, muaj kev txhawb nqa.
Ideal Application:Niaj hnub nimno pop suab, nyiaj siv ua haujlwm, thiab cov cuab yeej xav tau kom nthuav dav. Nco tseg: Yuav tsum muaj kev sib npaug ntawm lub voj voog kom tsis txhob muaj suab nrov dhau.

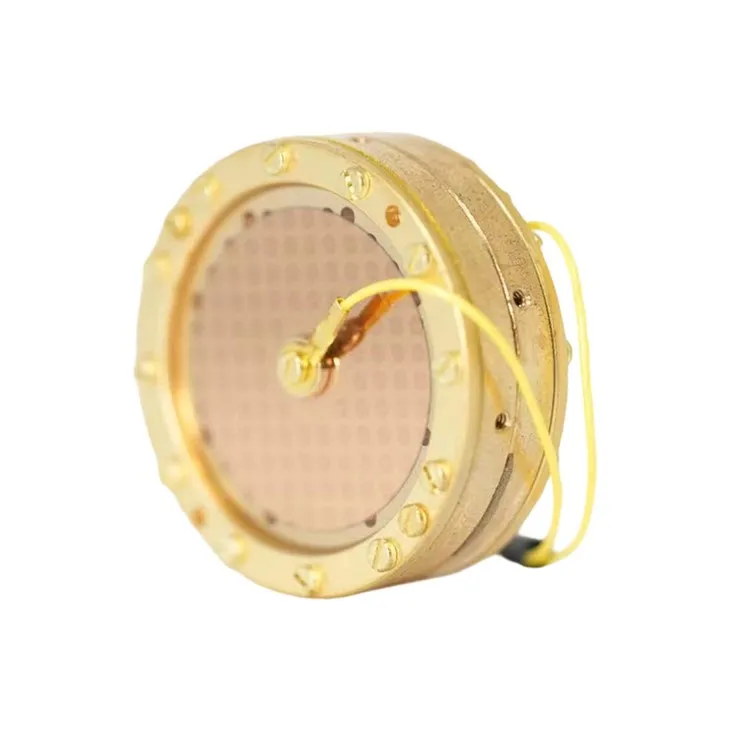

k87 tsi
Qhov zoo tshaj plaws rau:Kev ntsuas, Hi-Fi kaw, Tsis muaj kev ntes.
RK-87 yog qhov tseeb 34mm, dual -backplate loj-diaphragm condenser capsule. Nws yog raws li Neumann's K87 / K67. Ob lub backplates yog hluav taws xob insulated los ntawm ib leeg. Yog li no cov tshuaj ntsiav no tau sib xws nrog tus thawj Neumann U87i, uas yuav tsum tau muaj 4-hlau capsule. Ob lub backplates tau yooj yim txuas sab nraud rau kev siv hauv microphones uas tsis tas yuav teeb tsa 4-xaim.
Yam ntxwv:Tsis tshua muaj nruab nrab, pob tshab, dav ntau zaus.
Ideal Application:Classical suab paj nruag, piano, thiab raws li kev siv rau microphone calibration.

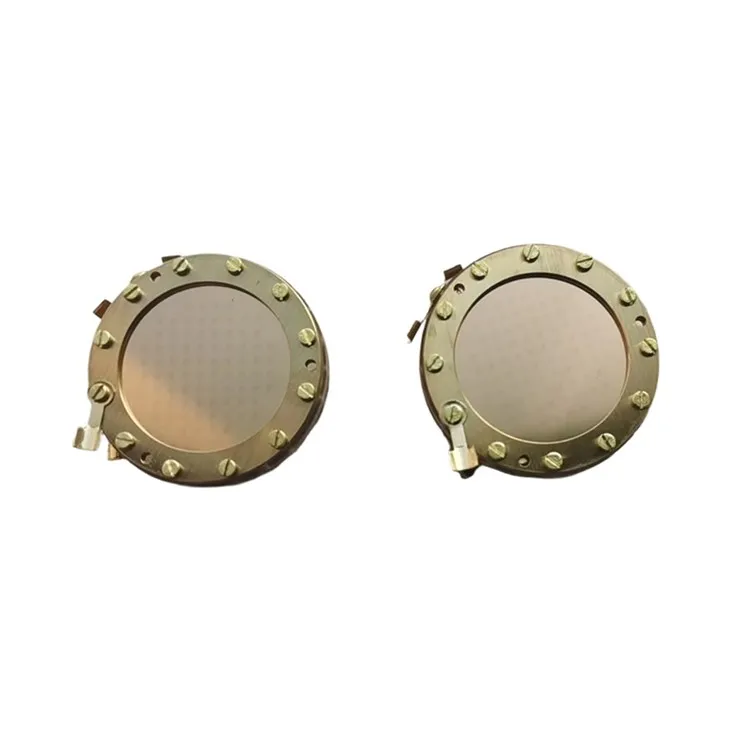

CK12 Capsule / C12-1 Capsule
Qhov zoo tshaj plaws rau:Brass, Strings, "Silky" Vocals.
Lub CK12 capsule yog ib ntug-tawm, loj-diaphragm microphone capsule ua los tsim lub suab ntawm AKG CK-12. Nws yog ib qho zoo ntxiv rau tube / transformer mic circuits, thiab yog qhov kev xaiv zoo tshaj rau kev kaw suab. Cov tshuaj ntsiav no muaj npe nrov rau nws qhov tshwj xeeb "ringing" high-frequency resonance uas tsim lub suab nrov, kim.
Yam ntxwv:Cov ncauj lus kom ntxaws siab, nrawm nrawm teb, vintage cim.
Ideal Application:Saxophones, trumpets, thiab vocals uas yuav tsum tau txiav los ntawm ib tug mix yam tsis sounding hnyav.

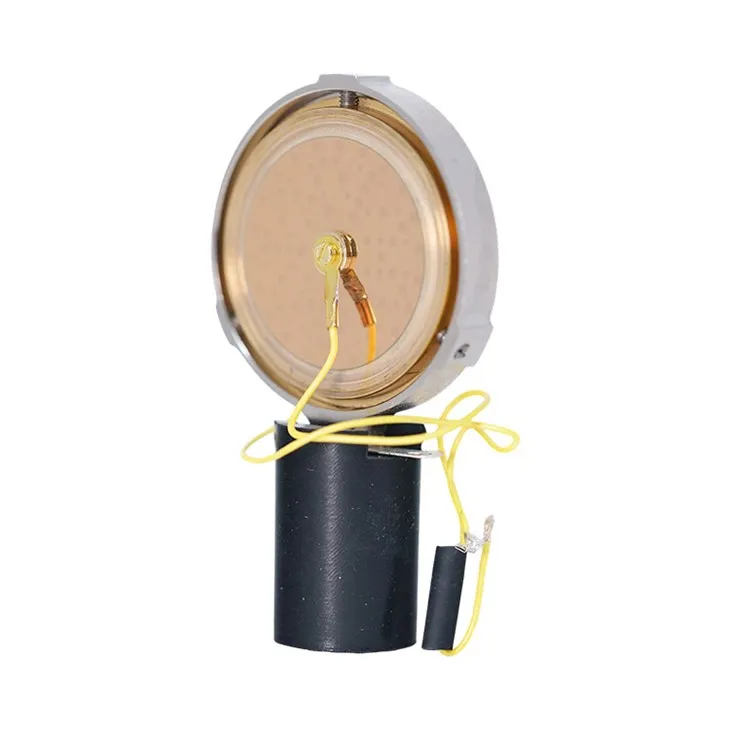

M7 Capsule
Qhov zoo tshaj plaws rau:Tube microphones, tshaj tawm, thiab retro tsim.
M7 microphone capsule yog cov tshuaj ntsiav tshuaj classic siv hauv Neumann tube microphones thaum ntxov (zoo li U47 thiab U48). Nws yog qhov txawv ntawm K47 (uas yog nws tus neeg ua tiav). M7 yog qhov khoom plig zoo heev rau nws txoj kev nruab nrab thiab yog qhov nyiam rau DIY tube microphone tej yaam num.
Yam ntxwv:Kev nplua nuj harmonics, vintage "bloom," txawv nruab nrab kev ntxhib los mos.
Ideal Application:Tshaj tawm lub suab- dhau mus, cov suab paj nruag classic, thiab boutique tube mic tsim.
Vim Li Cas Xaiv Peb Lub Microphone Capsules?
Peb lub microphone capsules yog tsim los ua kom tau raws li cov qauv thoob ntiaj teb (IEC 60268-4), kom ntseeg tau cov lus teb ntau zaus thiab tsis tshua muaj suab nrov. Peb tshwj xeeb hauv cov diaphragm loj capsules uas muab qhov sov so thiab nthuav dav xav tau rau kev tshaj tawm xov xwm thiab kev tsim suab paj nruag.
* Siab rhiab heev:Kub-sputtered diaphragms rau kev ntes cov teeb liab zoo dua.
* Tsawg Tus Kheej- Suab nrov:Zoo tagnrho rau siab - tau txais preamps thiab studio ib puag ncig.
* Durability:Kev tsim kho muaj zog tiv taus cov av noo thiab tuav lub suab nrov.
* Customization:Peb muab kev pabcuam OEM rau kev tsim khoom lag luam thiab kev kho suab nrov.
OEM & Kev txiav txim ntau
Peb yog cov chaw tsim khoom lag luam uas txhawb nqa lub npe nrov thoob ntiaj teb. Peb nkag siab tias cov tshuaj ntsiav tsuas yog ib feem ntawm qhov sib npaug; peb xyuas kom meej tias peb cov khoom sib xws nrog cov qauv PCBs thiab backplates (xws li Schoeps mounting threads).
Peb Muaj Peev Xwm Muaj Peev Xwm:
* Private Labeling: Ntxiv koj lub logo rau lub nplhaib capsule.
* Kev Cai Impedance: Tsim los rau cov qauv tsim tshwj xeeb.
* Kev Tswj Xyuas Zoo: 100% kuaj hauv ib puag ncig anechoic chamber.
* Ntawv pov thawj: Ntau lawm ua raws li ISO cov qauv; ua raws li RoHS thiab CE cov lus qhia.
Cov lus nug nquag
Nov yog cov lus teb rau cov lus nug ntau tshaj plaws txog peb lub microphone capsules. Nrhiav tsis pom qhov koj tab tom nrhiav? Hu rau peb pab neeg engineering ncaj qha.
Q1: Puas yog cov tshuaj ntsiav no hloov pauv rau cov hom loj (xws li Neumann, AKG)?
Q2: Dab tsi yog qhov txawv ntawm 2-backplate (3-xaim) thiab 3-backplate (4-xaim) capsule?
A: 2-Backplate (3-xaim): Feem ntau yog siv rau ib leeg-tus qauv (Cardioid) los yog switchable microphones qhov twg polarity yog switched electronically ntawm lub PCB.
3-Backplate (4-xaim): Yuav tsum tau rau lub microphones uas siv ib tug tseeb dual-diaphragm tsim kom ua tau ntau yam polar qauv (Omni, Figure-8, Cardioid) mechanically.
Tswv yim: Txheeb xyuas koj lub microphone's schematic kom pom tias lub tshuaj ntsiav yuav tsum muaj kev sib txuas tsis zoo rau lub nraub qaum.
Q3: Kuv puas yuav tsum rov ua dua -kev tsis ncaj ncees lub microphone tom qab hloov cov tshuaj ntsiav?
A: Feem ntau, peb lub microphone capsules tuaj ua ntej -ua rau cov qauv kev lag luam (feem ntau 60V-70V DC). Rau feem ntau DIY hloov lossis hloov kho dua tshiab (xws li kev sib pauv cov tshuaj ntsiav tshuaj rau K47 lossis K67), tsis tas yuav hloov kho. Txawm li cas los xij, yog tias koj tab tom tsim lub raj microphone kev cai, koj yuav tsum tau kho qhov polarization voltage kom ua kom zoo dua qhov ntau yam.
Q4: Kuv puas tuaj yeem yuav cov khub sib tw rau kev kaw suab?
A: Yog lawm. Peb nkag siab tias kev sib koom ua ke yog qhov tseem ceeb rau lub tso suab miking (piv txwv li, nruas overheads thiab orchestral recordings). Peb muab Matched Pairs guaranteed nyob rau hauv ± 1dB ntawm ib leeg nyob rau hauv rhiab heev thiab zaus teb.
Q5: Koj puas muab kev pabcuam OEM rau lub npe tshuaj ntsiav?
A: Yog. Peb tuaj yeem laser engraving koj lub logo rau ntawm lub nplhaib capsule. Peb kuj txhawb kev cai diaphragm tuning yog tias koj tab tom nrhiav rau ib qho "tsev suab" rau koj lub microphone hom.
Q6: Kuv yuav khaws cov khoom seem li cas?
A: Microphone capsules rhiab heev rau cov av noo thiab plua plav. Nco ntsoov khaws cov tshuaj ntsiav hauv lawv qhov kev tiv thaiv thawj zaug nrog cov khoom desiccant. Tsis txhob kov lub diaphragm ncaj qha, vim tias cov roj ntawm daim tawv nqaij tuaj yeem ua rau cov kub mus tas li -sputtered membrane.
